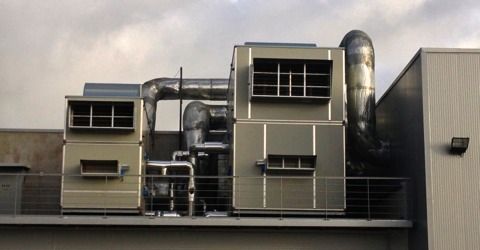

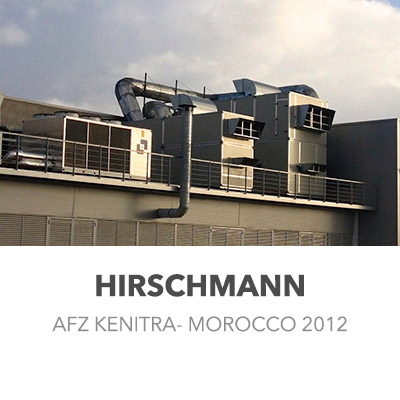

HIRSCHMANN
AFZ Kenitra - MOROCCO 2012
La Fourniture et la pose de l’installation de Climatisation et de l’installation de Cooling Procès d’un BATIMENT INDUSTRIEL a l’Atlantic Free Zone de Kenitra- MAROC
Providing and the running of the air conditioning installation as well as the cooling process installation of an industrial building in the Atlantic Free Zone in Kenitra (Morocco)

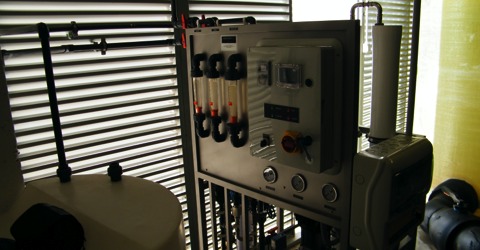

· Air conditioning installation, cooling process and water treatment.

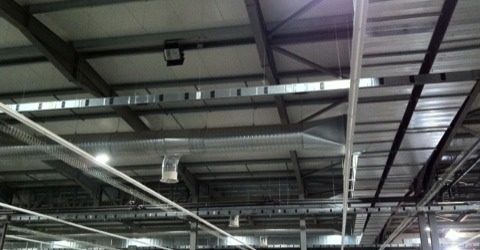

· Hangar area with air conditioning installation and cooling process: 9,800 square meters.

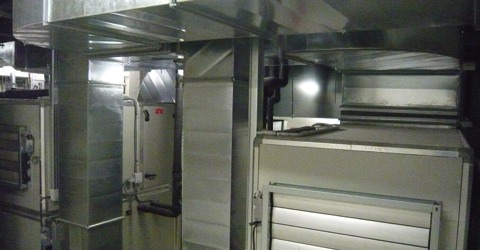

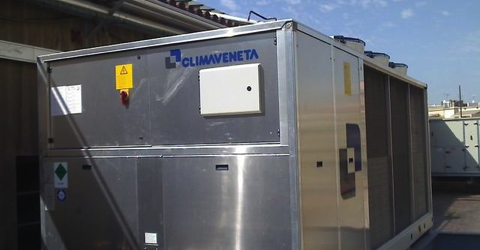

· Refrigerated air-water CLIMAVENETA and four cycle heat pumps, SERVOCLIMA air conditioning units with heat recovery and free-cooling.
· Office building area of 3,980 square meters with VRV Mitsubishi air conditioning.
PICASSO MUSEUM
Barcelona

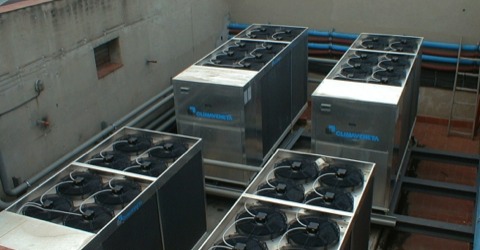

To achieve this stability, especially for the humidity, complete processing lines are required and especially a system to control the pressure. For this reason, an air and water conditioning system was created. The thermal energy plant is situated on the roof. The air cooling production is made by a rotary screw compressor in the refrigeration power plant, an air condenser with axial fans and partial recovery of the heat. To keep the machine noise to a minimum there is a control condenser operated by the fan and the compressor speed. To guarantee the dehumidification capacity of the water refrigerator, the unit treatment operates between 6 and 1 degree celsius. The recuperator is used to partially heat the air undergoing the dehumidification process. The machine is equipped with its own control and protection system and communication with the system is centrally managed. Heat production: the hot water is produced in a gas condensing boiler with a modulating burner which regulates the air and gas flux.

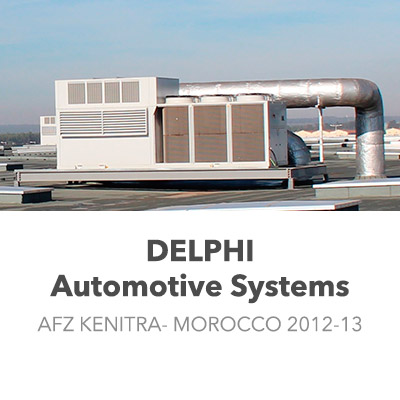

DELPHI Automotive Systems
AFZ Kenitra - MOROCCO 2012-13
La Fourniture et la pose de l’installation de Climatisation d’un BATIMENT INDUSTRIEL a l’Atlantic Free Zone de Kenitra - MAROC
Providing and the running of the air conditioning installation in an industrial building in the Atlantic Free Zone of Kenitra (Morocco)
· Air conditioning installation.

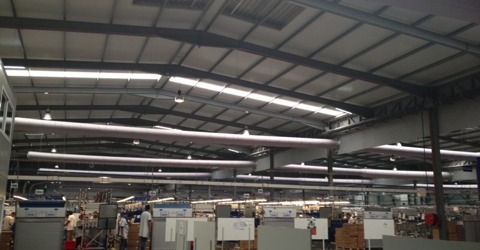

· Hangar area with air conditioning: 15,500 square meters.

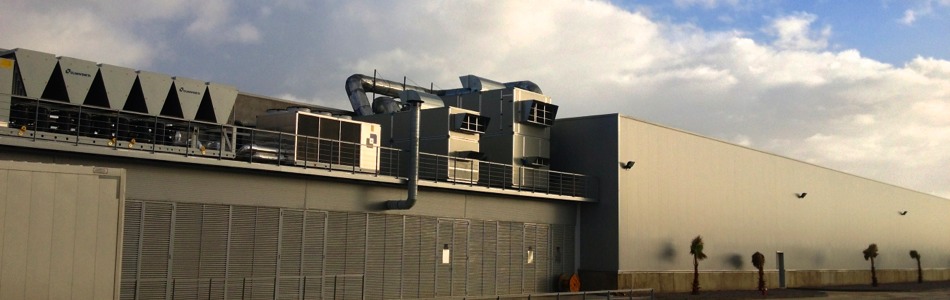

· Four CIAT Roof-top units with free-cooling, total power of 1,106.4 kW.
· Office and service building area of 4,500 and 1,210 square meters with Multi V LG air conditioning units.
LEAR Corporation
AFZ Kenitra - MOROCCO 2013
La Fourniture et la pose de l’installation de Climatisation et de protection d’incendies d’un BATIMENT INDUSTRIEL a l’Atlantic Free Zone de Kenitra - MAROC
Providing and the running of air conditioning and anti-fire protection installation in an industrial building in the Atlantic Free Zone de Kenitra (Morocco)
· Air conditioning and anti-fire protection installation.
· Hangar area with air conditioning and fire protection 20,900 square meters.
· Eight CLIMAVENTA roof-top units with free-cooling and total power of 1,776kW.

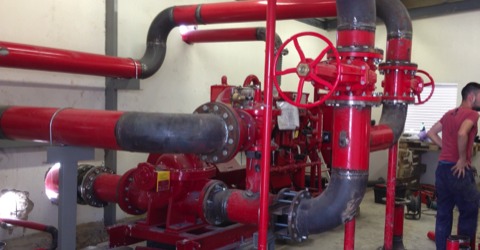

· Sprinfler network with reserve deposit installation of 1,035 m3 and a pressure group of 517 m3/h and 102 mca.
· Office building and service area of 5,130 square meters with Multi V LG I Roof-Top CLIMAVENETA air conditioning units.

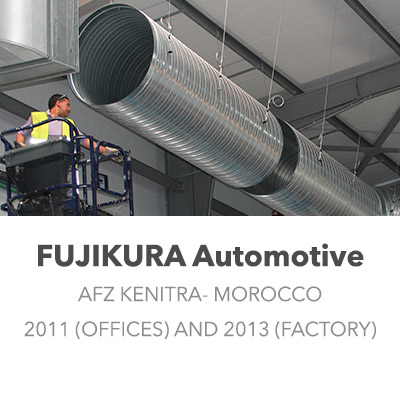

FUJIKURA Automotive
AFZ Kenitra - MOROCCO 2011 (offices) and 2013 (factory)
La Fourniture et la pose de l’installation de Climatisation d’un BATIMENT INDUSTRIEL a l’Atlantic Free Zone de Kenitra - MAROC
Providing and the running of air conditioning in an industrial building in the Atlantic Free Zone of Kenitra (Morocco)
· Air conditioning installation.
· Office building area of 2,350 square meters with Multi V LG air conditioning units.
· Hangar area with air conditioning:11.600 square meters.
· Four CIAT heat pump Roof-top units with recovery and free-cooling, total power of 1,106.4 kW.

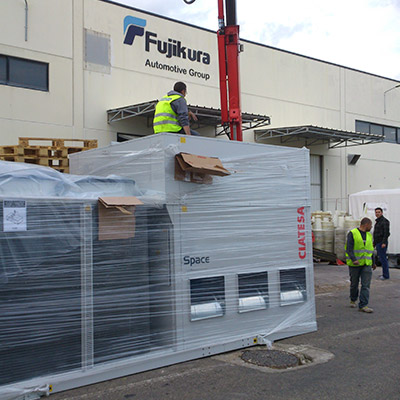

FUJIKURA Automotive
Tangiers - MOROCCO 2013 (factory)
La Fourniture et la pose de l’installation de Climatisation d’un BATIMENT INDUSTRIEL a la Free Zone de Tanger- MAROC
Providing and the running of an air conditioning installation in an industrial building in the Free Zone of Tangiers (Morocco)
· Air conditioning installation.
· Hangar area with air conditioning: 5,150 square meters
· Four CIAT heat pump Roof-top units with recovery and free-cooling, total power of 638.7 kW.

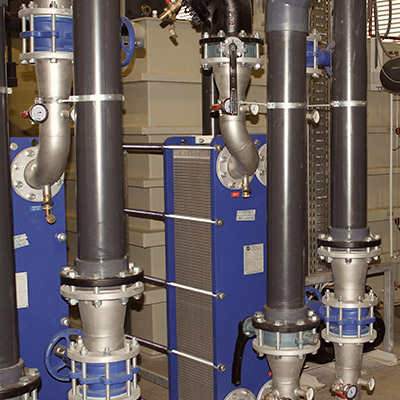

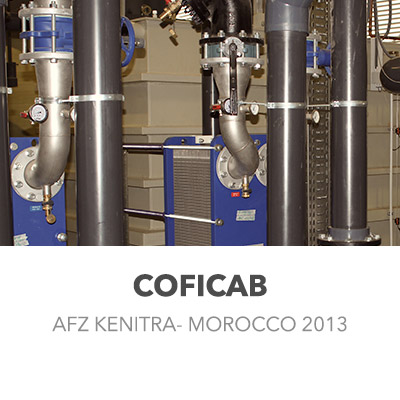

COFICAB
AFZ Kenitra - MOROCCO 2013
La Fourniture et la pose de l’installation de Cooling Procès et de ventilation d’un BATIMENT INDUSTRIEL a l’Atlantic Free Zone de Kenitra - MAROC
Providing and running of cooling process and ventilation installation in an industrial building in the Atlantic Free Zone of Kenitra (Morocco)
· Installation of refrigeration process and of ventilation/extraction.
· Hangar area: 4,100 square meters.

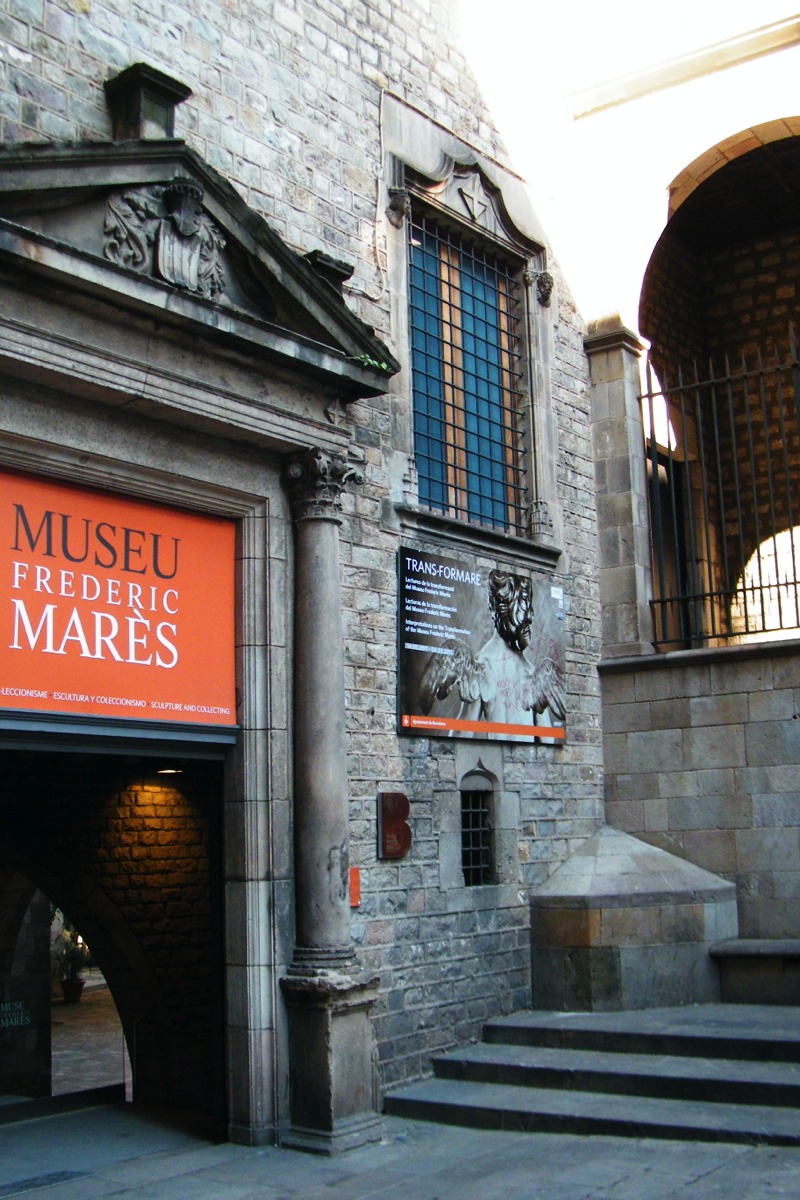

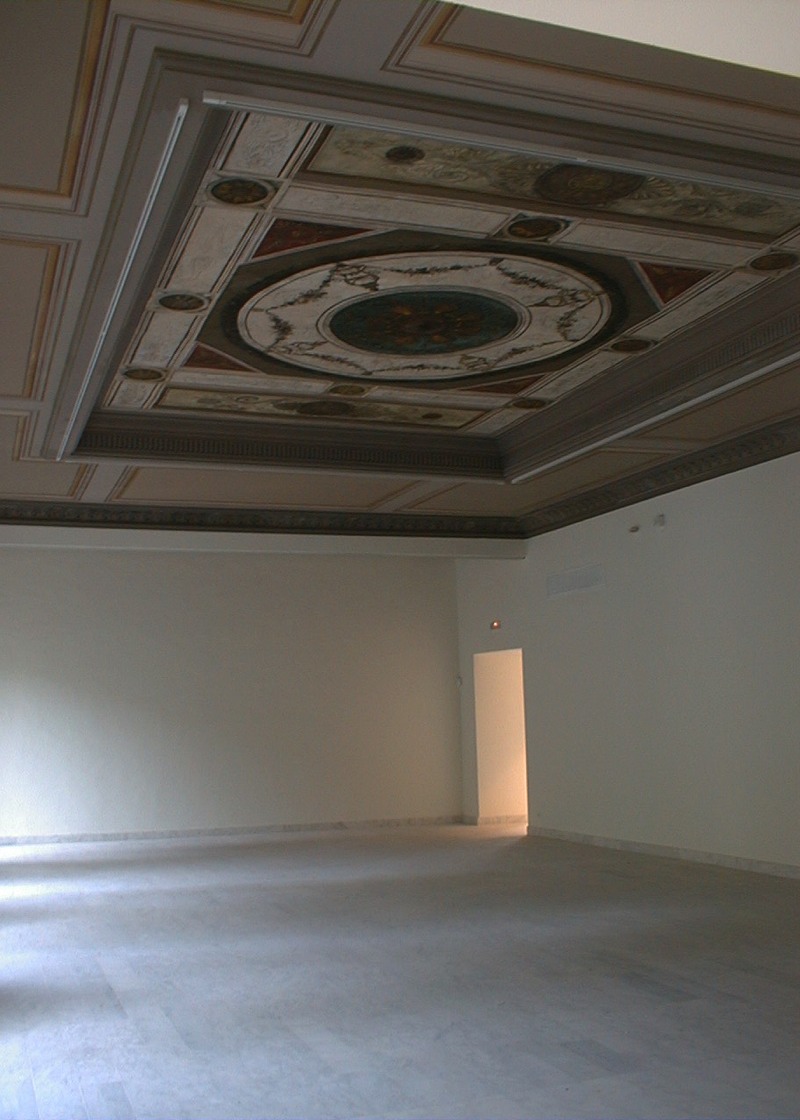

MUSEU FREDERIC MARÈS
Barcelona
For this reason, an air and water conditioning system was created. The thermal energy plant is situated on the roof and the air climate control units are distributed throughout the floors of the museum, in the ad hoc created areas.
The air cooling production is made by a rotary screw compressor in the refrigeration power plant, an air condenser with axial fans and partial recovery of the heat. To keep the machine noise to a minimum there is a control condenser operated by the fan and the compressor speed. To guarantee the dehumidification capacity of the water refrigerator, the unit treatment operates between 6 and 1 degrees celsius. The recuperator is used to partially heat the air undergoing the dehumidification process. The machine is equipped with its own control and protection system and communication with the system is centrally managed.
Heat production: the hot water is produced in a gas condensing boiler with a modulating burner which regulates the air and gas flux.

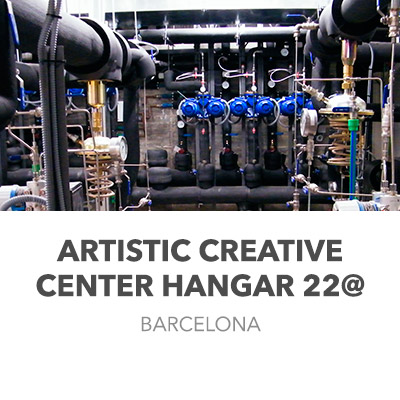

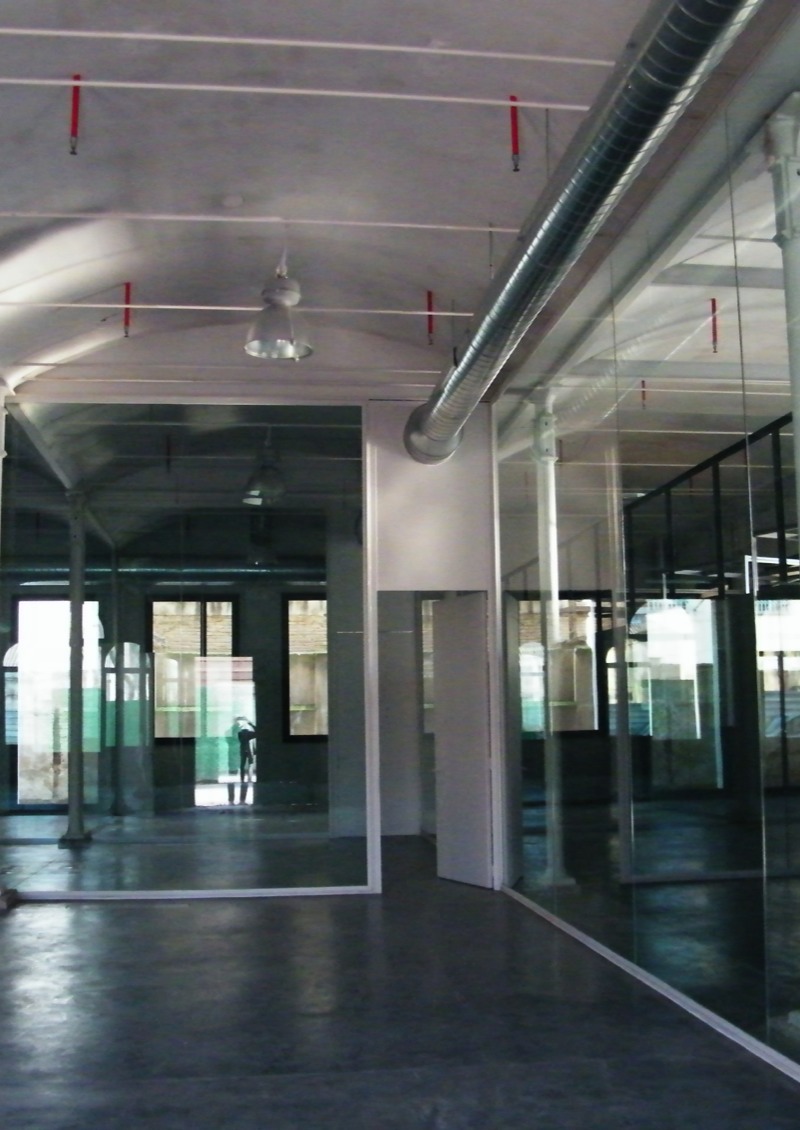

ARTISTIC CREATIVE CENTER HANGAR 22@
Barcelona
· INSTALLATIONS:
· ELECTRICITY AND LIGHTING.
· MECHANICS.
· AIR CONDITIONING AND SOUND PROOFING.
· SECURITY AND TELECOMMUNICATIONS.
· SPECIAL COMMUNICATIONS AND SIGNALS.
· SECURITY AND FIRE PROTECTION CONTROL.
The whole is formed by three industrial units and the tutor's house.
Unit number 1 has two double sized floors, while units number 2 and 3 are formed by only one floor. Each one has differents rooms, designed to hold different artistic events, and an administrative area composed of offices. Warehouse number 2 is used as a film set and warehouse number 3 is a multi-use hall with offices and audio and video rooms.
The tutor's house in Can Ricart is rehabilitated to hold temporary artists in residence.
